Overview

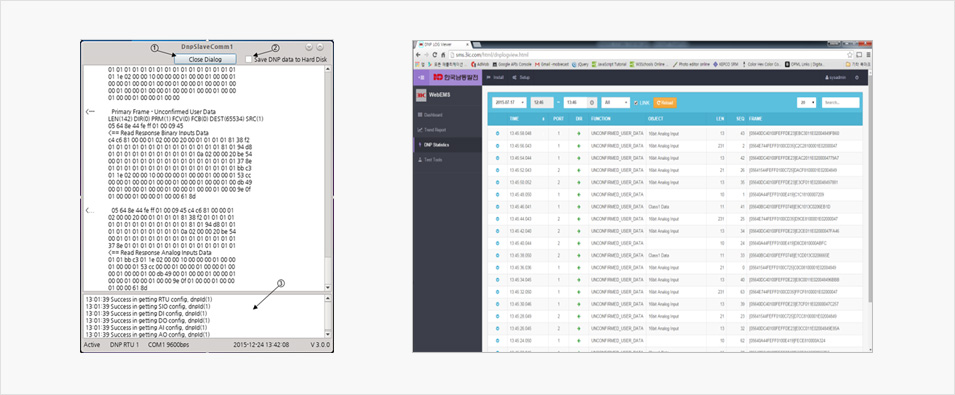

This system is installed on the MPU (Main Processing Unit) to display real-time DNP communication data between EMS and RTU .
on operator's screen, enabling the operator to confirm any communication error.
This software provides the operator options to save and store the communication history

Feature

• DNP communication history can be saved in separate file, enabling opeator to confirm later the status when any communication error occurs.
• Operator can select communication line for DNP protocol monitoring.
• This program is connected with MPU via internal communication to collect and process data required.
• This system is an independent program module on which the DNP protocol analysis performed shall not make any impact on the MPU-EMS communication
• Monitoring can be done by each EMS communication line.
• Monitoring data is saved by each day.
• Web / Desktop Application
