Overview

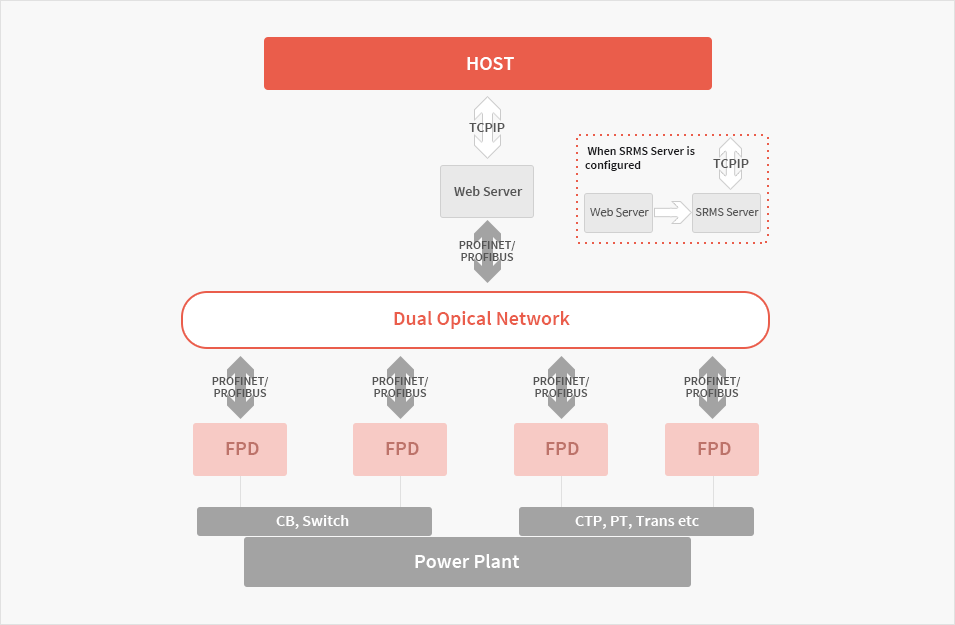

3IC miniRTU is for non-AGC Power Plants using module type PLC controller. The system collects electricity generation and transmission data and sends the data to NDC (KPX in Korea) Host Computer for non-AGC via Web Server.

Feature

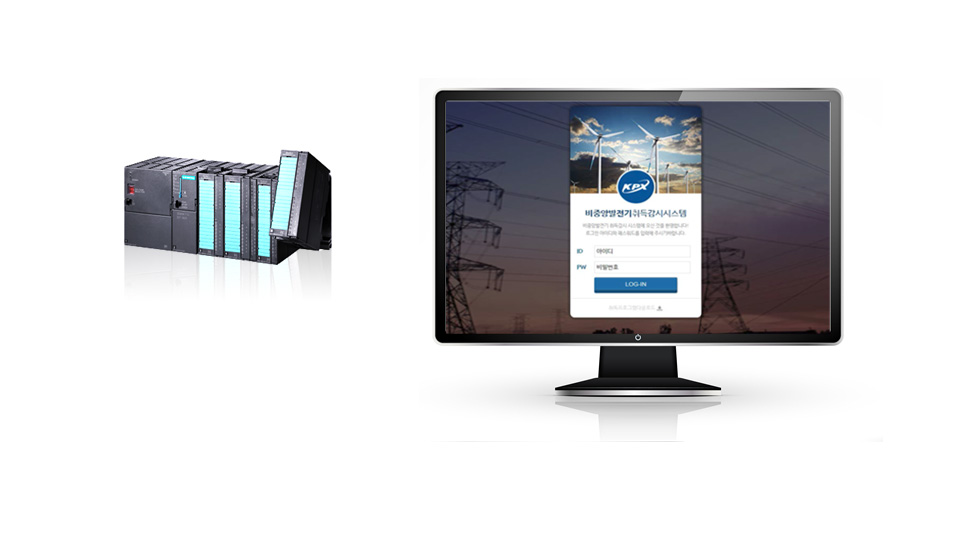

• Mini-RTU is consisted of PLC controller to collect field data and SMS to manage RTU data real-time either locally or remotely
  Mini-RTU data is transmitted to NDC non-AGC Host over TCP/IP network via Web Server in the RTU
• Mini-RTU SMS and Web Server is linked in Serial Communication (RS232C) for security purpose.
• Industrial standard Profibus (12Mbps) is used for data transmission
• Mini-RTU supports remote minitoring (Digital Input) and remote data collection
• Mini-RTU supports power redundancy and I/O subrack(shelf) expansion
